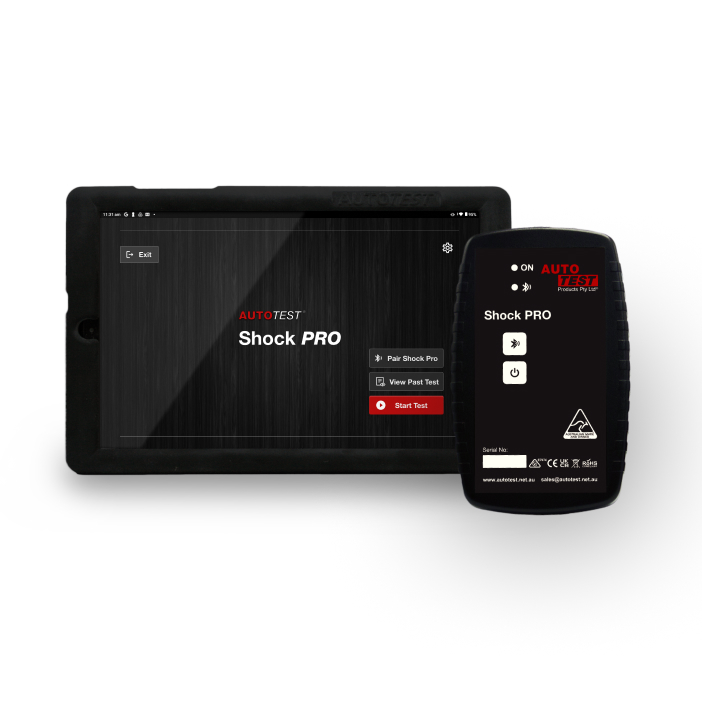

AutoStop Shock PRO

STEP 1: Connect Shock PRO

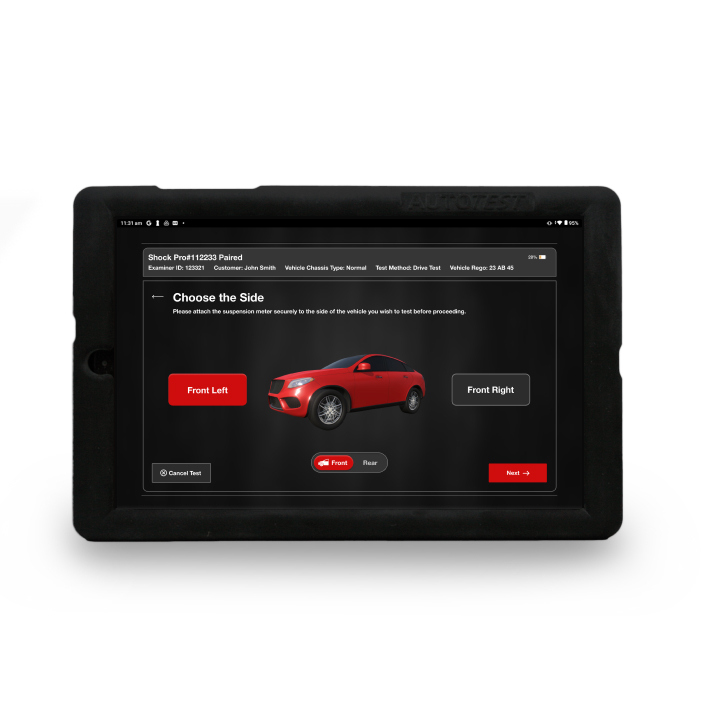

Pair the AutoStop Shock PRO with the AutoTest Workshop Pro 10 and enter the required vehicle and test details.

STEP 2: Perform Test

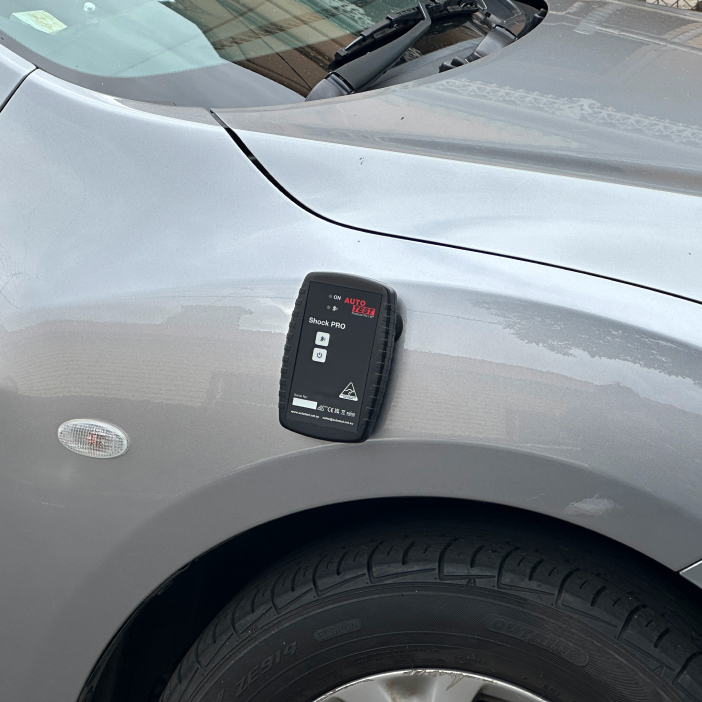

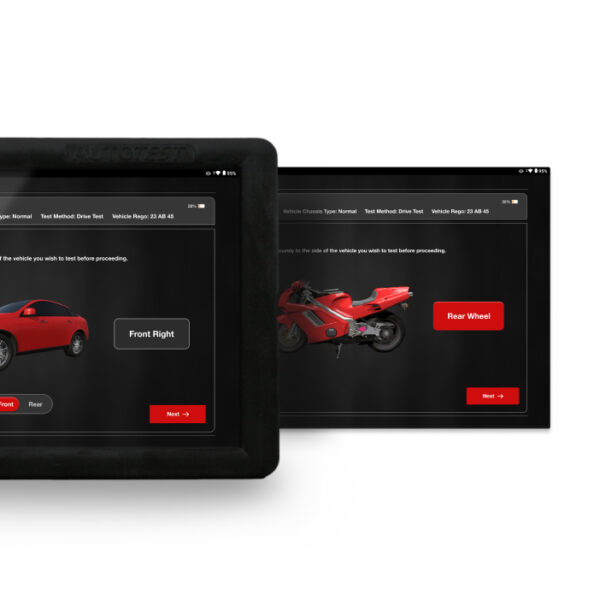

Secure the AutoStop Shock PRO to the selected wheel using the integrated suction cups and follow the guided testing workflow.

STEP 3: Analyse Results

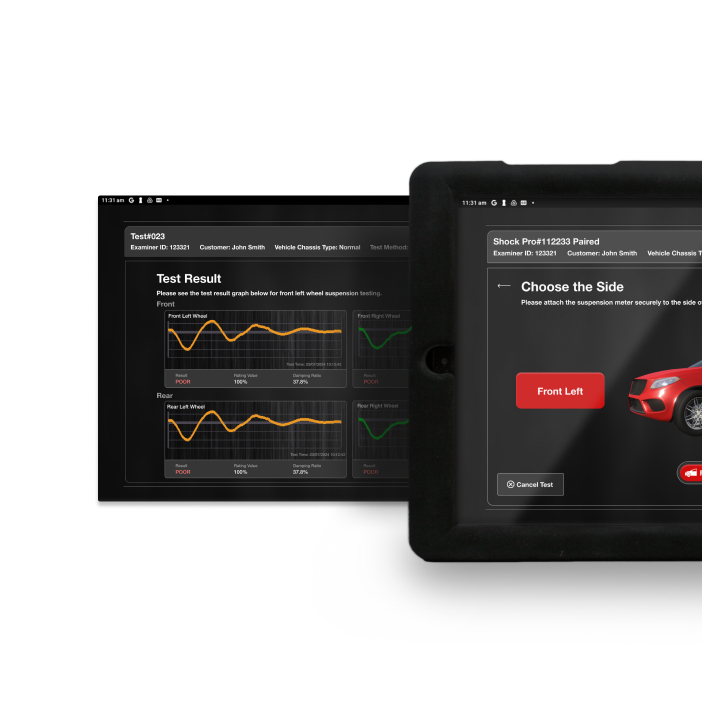

Review damping ratio measurements and graphical reports to assess suspension performance.

• Real-time damping ratio measurement and analysis
• Works seamlessly with the AutoTest Workshop Pro 10
• Wireless Bluetooth connectivity for efficient operation and printing
• Easy-to-understand graphs for quick diagnosis and reporting
• Compact, portable design with fast suction-cup installation
• Backed by local support, calibration and service

Physical Characteristics

• Weight: 500g
• Dimensions: 90 × 145 × 32mm

Power

• Battery: 3.7V lithium polymer
• Rechargeable battery
• Capacity: 1350mAh
• Battery Life: Up to 10 hours continuous testing
• Automatic shut-off

Connectivity

• Bluetooth interface
• AutoTest Workshop Pro 10 compatible
• Windows PC compatible
• PC download and graphing capability

Operating Conditions

• Temperature Range: -5°C to 50°C
• Humidity Range: 25% to 85% RH (noncondensing)

Calibration

• NATA (ISO 17025)

• Light vehicles
• 4WD vehicles
• Heavy vehicles
• Forklifts
• Airport Vehicles
• Farming and agricultural vehicles

• Compatible with the AutoTest Workshop Pro 10
• AutoTest Bluetooth Printer compatible
