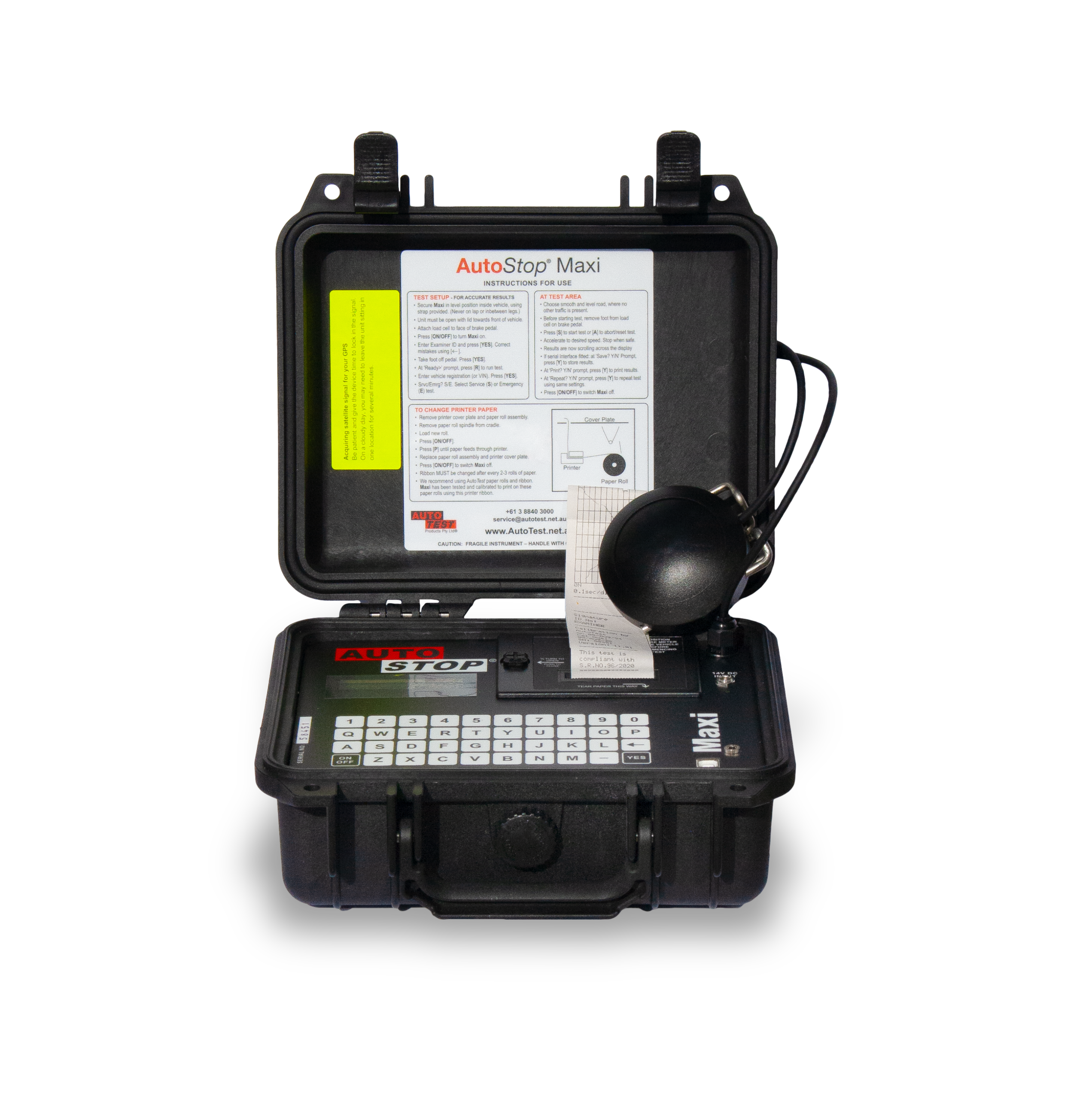

AutoStop Maxi GPS

STEP 1: Position & Setup
Secure the AutoStop Maxi GPS in the vehicle using the supplied restraint strap or optional floor-mounted magnet and attach the pedal force load cell.

STEP 2: Enter Information & Conduct the Test
Enter vehicle details and accelerate to the required test speed. Apply the brakes as instructed.

STEP 3: Review & Print Results
The AutoStop Maxi GPS automatically calculates brake performance, displays results and prints a permanent test result.

• Fast and simple brake testing process
• Generates permanent printed test results
• Reduces compliance and audit risk
• Portable design allows testing in majority of vehicles
• Stores up to 100 test results
• Rugged construction suitable for workshop environments
• Built-in GPS records test location coordinates for improved compliance documentation
• Backed by local support, calibration and service

Physical Characteristics:

• Weight: 3.0kg
• Dimensions: 123 × 267 × 246mm
• Environmental protection: resistant to water, petrol, chemicals and acids

Load Cell:

• Range: 0–1000N
• Resolution: ±1N

Accelerometer:

• Range: 0–1.5g
• Resolution: ±0.01g

Power:

• 12V, 2:0 AH, sealed-lead acid rechargeable battery

Printer:

• Integrated dot-matrix
• Paper maximum diameter: 48mm
• Paper width: 44.5mm ±0.5mm
• Ribbon: Epson ERC-05
• Ribbon typical life: equivalent to 3 paper rolls

Print Speed:

• 1 line per second

Calibration:

• NATA (ISO 17025)

• All Classes of vehicles (Test Classes I, II, III, IV, V, VI & VII)

• Floor mounted magnet
